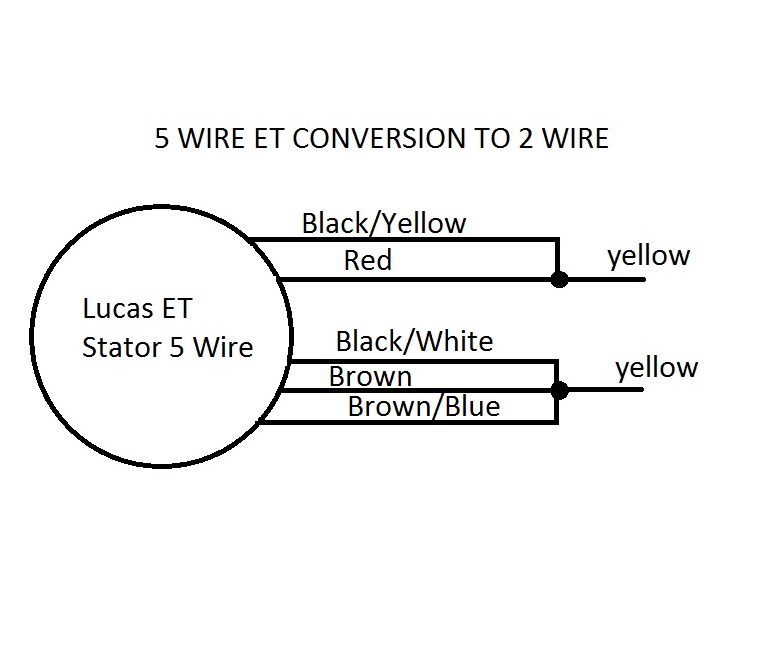

HOW TO CONVERT A 5 WIRE ET LUCAS STATOR TO A 2 WIRE 12V STATOR

CONNECT: BLACK/YELLOW & RED LEADS TOGETHER. THIS FORMS ONE LEG

CONNECT: BROWN/BLUE, BROWN, & BLACK/WHITE TOGETHER. THIS FORMS THE SECOND LEG

CLICK HERE FOR OUR ARTICLE ON SOLID STATE VOLTAGE REGULATORS

If color codes vary from those listed the conversion may not work on you stator. Give us a call with details and we may be able to help.
