1970 Triumph 650 Frame

Click Reference Numbers to View Parts


1. 83-1254 Front frame section

Reference only


2. 97-0111 Steering race cup x2

Placeholder

Fork Spares

97-0111

Approx Retail: $18.81

Price

Total

FRAME RACE LATE T100/T120


Warning: sizeof(): Parameter must be an array or an object that implements Countable in /srv/users/jrc-staging-site/apps/jrc-staging-site/public/wp-content/themes/multi-shop/inc/woocommerce.php on line 447
SKU:
97-0111

3. 60-2364 Steel ball (1/4″ diam) x40

BALL BEARING 1/4


Warning: sizeof(): Parameter must be an array or an object that implements Countable in /srv/users/jrc-staging-site/apps/jrc-staging-site/public/wp-content/themes/multi-shop/inc/woocommerce.php on line 447
SKU:
60-2364

4. 97-1018 Top cone & dust cover x1

Placeholder

Fork Spares

97-1018

Approx Retail: $40.44

Price

Total

TOP CONE WITH DUST COVER


Warning: sizeof(): Parameter must be an array or an object that implements Countable in /srv/users/jrc-staging-site/apps/jrc-staging-site/public/wp-content/themes/multi-shop/inc/woocommerce.php on line 447
SKU:
97-1018

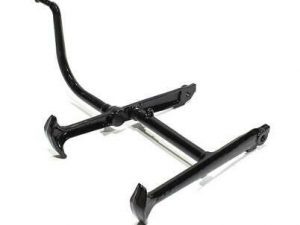

5. 83-1267 Center stand x1

Frame

83-1267

Approx Retail: $183.48

Price

Total

CENTER STAND T120 63-70


Warning: sizeof(): Parameter must be an array or an object that implements Countable in /srv/users/jrc-staging-site/apps/jrc-staging-site/public/wp-content/themes/multi-shop/inc/woocommerce.php on line 447
SKU:
83-1267

6. 57-2331 Center stand rubber x1

CENTER STAND RUBBER


Warning: sizeof(): Parameter must be an array or an object that implements Countable in /srv/users/jrc-staging-site/apps/jrc-staging-site/public/wp-content/themes/multi-shop/inc/woocommerce.php on line 447
SKU:
57-2331

7. 21-1978 Pivot bolt x2

BOLT C/STAND BOLT PRE/OIF


Warning: sizeof(): Parameter must be an array or an object that implements Countable in /srv/users/jrc-staging-site/apps/jrc-staging-site/public/wp-content/themes/multi-shop/inc/woocommerce.php on line 447
SKU:
21-1978

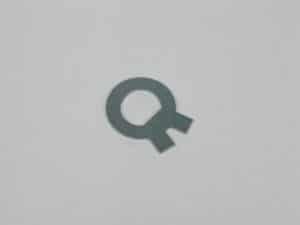

8. 83-1270 Tab washer x2

Frame

83-1270

Approx Retail: $1.78

Price

Total

TAB WASHER,CNTR STND LATE


Warning: sizeof(): Parameter must be an array or an object that implements Countable in /srv/users/jrc-staging-site/apps/jrc-staging-site/public/wp-content/themes/multi-shop/inc/woocommerce.php on line 447
SKU:
83-1270

9. 14-0404 Nut 7/16 UNF x2

NUT 7/16 UNF THIN


Warning: sizeof(): Parameter must be an array or an object that implements Countable in /srv/users/jrc-staging-site/apps/jrc-staging-site/public/wp-content/themes/multi-shop/inc/woocommerce.php on line 447
SKU:
14-0404

10. 82-4671 Return spring x1

Frame

82-4671

Approx Retail: $4.74

Price

Total

CENTER STAND SPRING


Warning: sizeof(): Parameter must be an array or an object that implements Countable in /srv/users/jrc-staging-site/apps/jrc-staging-site/public/wp-content/themes/multi-shop/inc/woocommerce.php on line 447
SKU:
82-4671

11. 83-1560 Side stand x1

Frame

83-1560

Approx Retail: $130.25

Price

Total

SIDE STAND,68-82 TRIUMPH


Warning: sizeof(): Parameter must be an array or an object that implements Countable in /srv/users/jrc-staging-site/apps/jrc-staging-site/public/wp-content/themes/multi-shop/inc/woocommerce.php on line 447
SKU:
83-1560

12. 14-0216 Bolt 5/16 UNF  (1 1/8″ U.H.) x1

BOLT 5/16 UNF 1 1/8UH


Warning: sizeof(): Parameter must be an array or an object that implements Countable in /srv/users/jrc-staging-site/apps/jrc-staging-site/public/wp-content/themes/multi-shop/inc/woocommerce.php on line 447
SKU:
14-0216

13. 14-0402 Nut 5/16 UNF  x1

NUT 5/16 UNF THIN


Warning: sizeof(): Parameter must be an array or an object that implements Countable in /srv/users/jrc-staging-site/apps/jrc-staging-site/public/wp-content/themes/multi-shop/inc/woocommerce.php on line 447
SKU:
14-0402

14. 82-7021 Pivot bolt x

Frame

82-7021

Approx Retail: $10.17

Price

Total

PIVOT BOLT,PROP STAND 67-


Warning: sizeof(): Parameter must be an array or an object that implements Countable in /srv/users/jrc-staging-site/apps/jrc-staging-site/public/wp-content/themes/multi-shop/inc/woocommerce.php on line 447
SKU:
82-7021

15. 14-0703 Self locking nut x1

LOCK NUT THIN 3/8UNF


Warning: sizeof(): Parameter must be an array or an object that implements Countable in /srv/users/jrc-staging-site/apps/jrc-staging-site/public/wp-content/themes/multi-shop/inc/woocommerce.php on line 447
SKU:
14-0703

16. 82-8382 Return spring x1

Frame

82-8382

Approx Retail: $6.89

Price

Total

PROP STAND SPRING 68-ON


Warning: sizeof(): Parameter must be an array or an object that implements Countable in /srv/users/jrc-staging-site/apps/jrc-staging-site/public/wp-content/themes/multi-shop/inc/woocommerce.php on line 447
SKU:
82-8382

17. 82-8036 Rear frame x1

Placeholder

Frame

82-8036

Approx Retail: $387.26

Price

Total

REAR FRAME SECTION,69-70


Warning: sizeof(): Parameter must be an array or an object that implements Countable in /srv/users/jrc-staging-site/apps/jrc-staging-site/public/wp-content/themes/multi-shop/inc/woocommerce.php on line 447
SKU:
82-8036

18. 21-1801 Stud (3 7/8″ O.A.) x1

STUD,SUBFRAME T120/150


Warning: sizeof(): Parameter must be an array or an object that implements Countable in /srv/users/jrc-staging-site/apps/jrc-staging-site/public/wp-content/themes/multi-shop/inc/woocommerce.php on line 447
SKU:
21-1801

19. 60-2330 Plain 5/16 ID washer x2

Hardware

60-2330

Approx Retail: $0.25

Price

Total

WASHER 5/16 S25-3 60-4247


Warning: sizeof(): Parameter must be an array or an object that implements Countable in /srv/users/jrc-staging-site/apps/jrc-staging-site/public/wp-content/themes/multi-shop/inc/woocommerce.php on line 447
SKU:
60-2330

20. 14-1303 Self locking 3/8 UNF nut x2

NUT 3/8 CLEVELOC P TYPE


Warning: sizeof(): Parameter must be an array or an object that implements Countable in /srv/users/jrc-staging-site/apps/jrc-staging-site/public/wp-content/themes/multi-shop/inc/woocommerce.php on line 447
SKU:
14-1203

21. 14-0251 Bolt (2 11/16″ U.H.) x2

BOLT 7/16X2 3/4 FRME T150


Warning: sizeof(): Parameter must be an array or an object that implements Countable in /srv/users/jrc-staging-site/apps/jrc-staging-site/public/wp-content/themes/multi-shop/inc/woocommerce.php on line 447
SKU:
14-0251

22. 82-4370 Plain washer x2

Placeholder

Frame

82-4370

Approx Retail: $2.83

Price

Total

WASHER,FOOTREST


Warning: sizeof(): Parameter must be an array or an object that implements Countable in /srv/users/jrc-staging-site/apps/jrc-staging-site/public/wp-content/themes/multi-shop/inc/woocommerce.php on line 447
SKU:
82-4370

23. 14-1304 7/16 UNF Nut x2

NUT 7/16 UNF CLEVELOC


Warning: sizeof(): Parameter must be an array or an object that implements Countable in /srv/users/jrc-staging-site/apps/jrc-staging-site/public/wp-content/themes/multi-shop/inc/woocommerce.php on line 447
SKU:
14-1304

24. 60-4251 Spring washer x2

Placeholder

Hardware

60-4251

Approx Retail: $0.56

Price

Total

LOCK WASHER 7/16 PCW73A


Warning: sizeof(): Parameter must be an array or an object that implements Countable in /srv/users/jrc-staging-site/apps/jrc-staging-site/public/wp-content/themes/multi-shop/inc/woocommerce.php on line 447
SKU:
60-4251

25. 21-0588 Bolt (1 3/16″ U.H.) x2

BOLT 7/16 UNF 1 1/4UH


Warning: sizeof(): Parameter must be an array or an object that implements Countable in /srv/users/jrc-staging-site/apps/jrc-staging-site/public/wp-content/themes/multi-shop/inc/woocommerce.php on line 447
SKU:
21-0588

26. 82-7155 Steering stop x2

Placeholder

Frame

82-7155

Approx Retail: $9.82

Price

Total

STEERING STOP


Warning: sizeof(): Parameter must be an array or an object that implements Countable in /srv/users/jrc-staging-site/apps/jrc-staging-site/public/wp-content/themes/multi-shop/inc/woocommerce.php on line 447
SKU:
82-7155

27. 83-1356 Front engine plate x2

Placeholder

Frame

83-1356

Approx Retail: $14.98

Price

Total

FRONT ENGINE PLATE,70 650


Warning: sizeof(): Parameter must be an array or an object that implements Countable in /srv/users/jrc-staging-site/apps/jrc-staging-site/public/wp-content/themes/multi-shop/inc/woocommerce.php on line 447
SKU:
83-1356

28. 14-0252 Bolt x2

BOLT 7/16 UNF 3 INCH UH


Warning: sizeof(): Parameter must be an array or an object that implements Countable in /srv/users/jrc-staging-site/apps/jrc-staging-site/public/wp-content/themes/multi-shop/inc/woocommerce.php on line 447
SKU:
14-0252

29. 14-1204 7/16 Nut x2

NUT 7/16 CLEVELOC


Warning: sizeof(): Parameter must be an array or an object that implements Countable in /srv/users/jrc-staging-site/apps/jrc-staging-site/public/wp-content/themes/multi-shop/inc/woocommerce.php on line 447
SKU:
14-1204

30. 60-4245 Plain washer x2

Placeholder

Hardware

60-4245

Approx Retail: $0.37

Price

Total

1/4 PLAIN WASHER S25-1


Warning: sizeof(): Parameter must be an array or an object that implements Countable in /srv/users/jrc-staging-site/apps/jrc-staging-site/public/wp-content/themes/multi-shop/inc/woocommerce.php on line 447
SKU:
60-4245

Not Illustrated 60-2452 Transfer “Saftey Standard” x1

DOT TRANSFER TR6 01/70


Warning: sizeof(): Parameter must be an array or an object that implements Countable in /srv/users/jrc-staging-site/apps/jrc-staging-site/public/wp-content/themes/multi-shop/inc/woocommerce.php on line 447
SKU:
60-2452-01/70
